Motor Sp Ph 1/2 HP 1725 115/230 56Z Open by Century in US
Century Belt Drive HVAC Motors in USA
|
US tech data: item ID: RB2054DV3. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1725,voltage 115/230,1 phase,frame 56z,open,full load amps 9.6/4.8,60 hz,cradle base motor mounting type,thermal protection auto,insulation class b,service factor 1.25,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 10-5/16 in.,shaft dia. 1/2 in.,shaft length 2 in.,includes adapter to convert shaft from 1/2 to 5/8 in. Keyed. Distributor item SKU: G2619802. Reliable & durable belt drive HVAC motors by Century at best USA discount price and fast shipping.
 Indicative Price: USD 200.45
(for Actual Current Price, possibly lower,
please click below)
More Info & Supplier : click here
For more high specification HVAC technical products : click here
|
Try Search on this site - find exactly what you need! Click below:
|
|
|
|
 |
|
|
|
Mtr 3 Ph 1 HP 1725 200-230/460V Eff 75.0 by Century in US
USD 275.67
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: H615V2. Belt drive motor,3-phase,cradle base hp,nameplate rpm 1725,voltage 200-230/460,3 phase,frame 56,open dripproof,full load amps 3.4-3.6/1.8,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.25,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 11-1/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Mtr 3 Ph 1/2hp 1140 200-230/460 Eff 76.0 by Century in US
USD 289.01
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: H1029. Belt drive motor,3-phase,cradle base hp,nameplate rpm 1140,voltage 200-230/460,3 phase,frame 56,totally enclosed nonventilated,full load amps 2.1-2.0/1.0,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.15,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 11-1/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Mtr 3ph 3/4hp 1725/1140 200-230 Eff 73.0 by Century in US
USD 414.18
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: H657V1. Belt drive motor,3-phase,cradle base hp,nameplate rpm 1725/1140,voltage 200-230,3 phase,frame 56y,open dripproof,full load amps 2.5-2.6/1.5-1.6,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.25,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 10-5/8 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

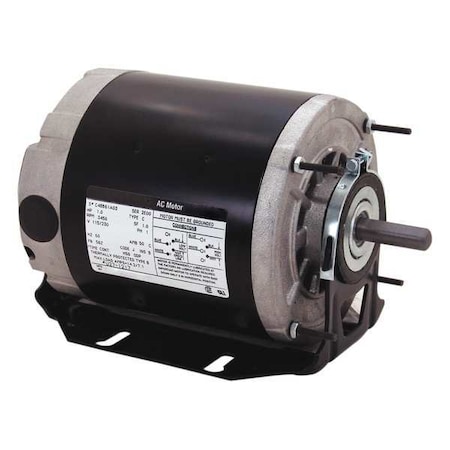

Mtr 3 Ph 1/4hp 1140 200-230/460 Eff 70.0 by Century in US
USD 196.94
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: H1026. Belt drive motor,3-phase,cradle base hp,nameplate rpm 1140,voltage 200-230/460,3 phase,frame 56,totally enclosed nonventilated,full load amps 1.3-1.2/0.6,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.15,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 10-1/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

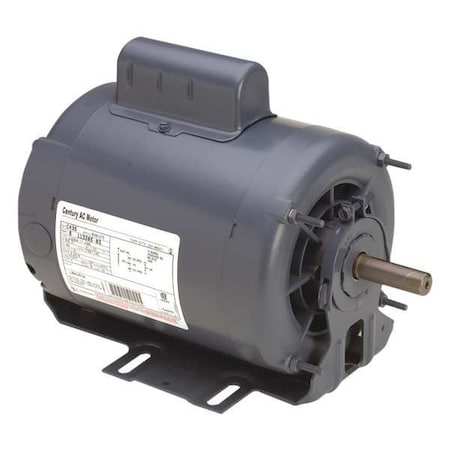

Motor Cap St 3/4 HP 1725/1140 115 56 ODP Model C533 by Century in US
USD 402.29
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: C533. Belt drive motor, capacitor-start, 3/4, 1/5 hp, nameplate rpm 1725/1140, voltage 115, 1 phase, frame 56, open dripproof, full load amps 10.0/4.0, 60 hz, cradle base motor mounting type, motor thermal protection auto, ins. Class b, motor service factor 1.25, ball motor bearings, max. Ambient temp. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Belt Drive Motor 1 HP 3.2-3.0/1.5A by Century in US
USD 307.01
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: H882LES. Belt drive motor, 3-phase, 1 hp, nameplate rpm 1725, voltage 208-230/460, 3 phase, frame 56h, open, full load amps 3.2-3.0/1.5, 60 hz, rigid base motor mounting type, motor mounting position horizontal, motor thermal protection auto, ins. Class b, motor service factor 1.15, ball motor bearings, max. Ambient temp. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

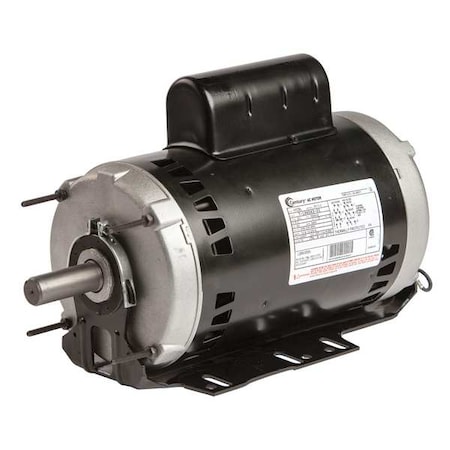

Mtr 3 Ph 5 HP 3450 208-230/460V Eff 85.2 by Century in US
USD 455
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: H1039L. Belt drive motor,3-phase,cradle base hp,nameplate rpm 3450,voltage 208-230/460,3 phase,frame 56hz,open dripproof,full load amps 13.4-13.2/6.6,60 hz,cradle base motor mounting type,thermal protection auto,insulation class b,service factor 1.15,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 14-9/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Mtr 3 Ph 3/4hp 1725 200-230/460 Eff 68.4 by Century in US
USD 268.85
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: H582V2. Belt drive motor,3-phase,cradle base hp,nameplate rpm 1725,voltage 200-230/460,3 phase,frame 56,open dripproof,full load amps 2.7-2.8/1.4,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.25,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 10-1/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Cap St 1/2 HP 1725/1140 115 56 ODP Model C532 by Century in US
USD 307.58
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: C532. Belt drive motor, capacitor-start, 1/2, 1/4 hp, nameplate rpm 1725/1140, voltage 115, 1 phase, frame 56, open dripproof, full load amps 6.8/4.0, 60 hz, cradle base motor mounting type, motor thermal protection auto, ins. Class b, motor service factor 1.25, ball motor bearings, max. Ambient temp. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

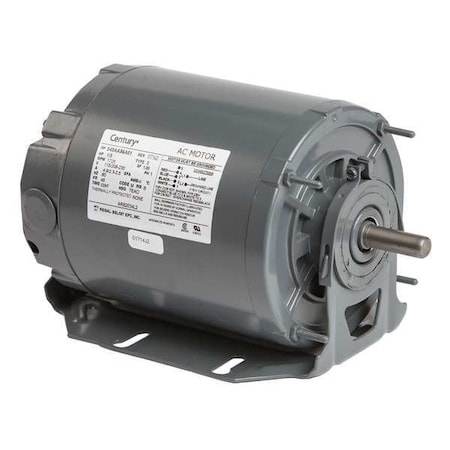

Motor Sp Ph 1/3 HP 1725 115/208-230V 48 by Century in US
USD 130.95
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: ARB2034L2. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1725,voltage 115/208-230,1 phase,frame 48,totally enclosed air-over,full load amps 4.9/2.3-2.5,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.0,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 9-7/8 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

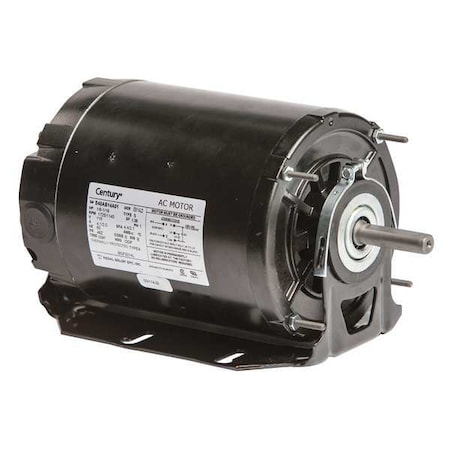

Motor Split Ph 1/6 HP 1725/1140 115V 48Z by Century in US
USD 167.95
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: BGF2014L. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1725/1140,voltage 115,1 phase,frame 48z,open dripproof,full load amps 4.4/2.1,60 hz,cradle base motor mounting type,thermal protection auto,insulation class b,service factor 1.35,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 10-11/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Cap St 1 HP 3450 115/208-230V 56 by Century in US
USD 217.77
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: B701. Belt drive motor, capacitor-start, 1 hp, nameplate rpm 3450, voltage 115/208-230, 1 phase, frame 56, open dripproof, full load amps 12.0/6.6-6.0, 60 hz, cradle base motor mounting type, motor mounting position all angle, motor thermal protection auto, ins. Class a, motor service factor 1.25, sleeve motor bearings, max. Ambient temp. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

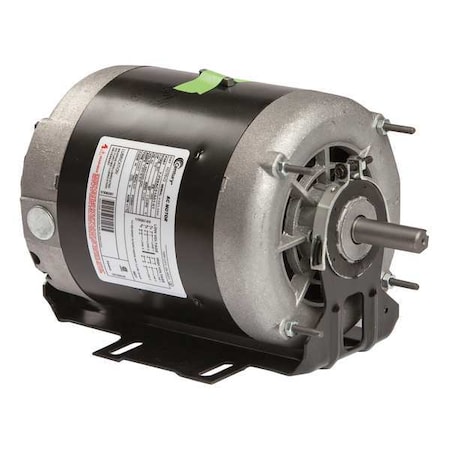

Mtr 3 Ph 1/2hp 1725 200-230/460 Eff 73.1 by Century in US
USD 196.88
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: H275V2. Belt drive motor, 3-phase, 1/2 hp, nameplate rpm 1725, voltage 200-230/460, 3 phase, frame 56, open dripproof, full load amps 1.8-2.0/1.0, 60 hz, cradle base motor mounting type, motor thermal protection none, ins. Class b, motor service factor 1.25, ball motor bearings, max. Ambient temp. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Split Ph 1/6 HP 1140 115V 48Z ODP by Century in US
USD 188
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: 815V2. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1140,voltage 115,1 phase,frame 48z,open dripproof,full load amps 3.6,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.35,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 10-1/8 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Mtr 3 Ph 1.5hp 1725 200-230/460 Eff 75.7 by Century in US
USD 266.17
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: H536L. Belt drive motor,3-phase,cradle base hp,nameplate rpm 1725,voltage 200-230/460,3 phase,frame 56h,open dripproof,full load amps 5.3-5.6/2.8,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.2,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 12-3/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
|
|
|
Try Search on this site - find exactly what you need! Click below:
|
|
Item on this page: Motor Sp Ph 1/2 HP 1725 115/230 56Z Open by Century in US
|
