Mtr 3 Ph 1 HP 1725 200-230/460V Eff 75.0 by Century in US
Century Belt Drive HVAC Motors in USA
|
US tech data: item ID: H615V2. Belt drive motor,3-phase,cradle base hp,nameplate rpm 1725,voltage 200-230/460,3 phase,frame 56,open dripproof,full load amps 3.4-3.6/1.8,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.25,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 11-1/16 in.,shaft dia. 5/8 in.,shaft length 1-15/16 in. Distributor item SKU: G3731612. Reliable & durable belt drive HVAC motors by Century at best USA discount price and fast shipping.
 Indicative Price: USD 275.67
(for Actual Current Price, possibly lower,
please click below)
More Info & Supplier : click here
For more high specification HVAC technical products : click here
|
Try Search on this site - find exactly what you need! Click below:
|
|
|
|
 |
|
|
|
Motor Sp Ph 1/3 HP 1725 115/208-230V 56Z by Century in US
USD 143.5
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: BF2034B. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1725,voltage 115/208-230,1 phase,frame 56z,open air-over,full load amps 6.6/3.2-3.3,60 hz,cradle base motor mounting type,thermal protection auto,insulation class b,service factor 1.35,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 10-1/8 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

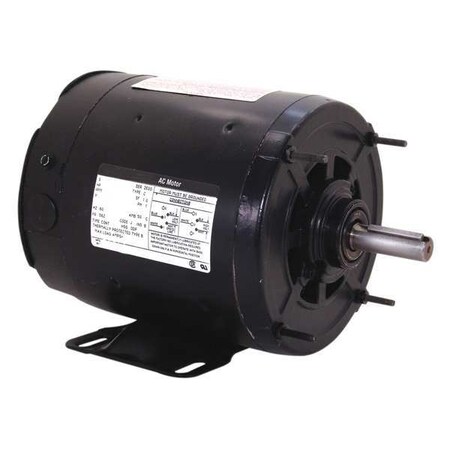

Motor Split Ph 1/2 HP 1725 115V 56Z Open by Century in US
USD 119.5
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: OS2050. Belt drive motor, split-phase, 1/2 hp, nameplate rpm 1725, voltage 115, 1 phase, frame 56z, open air-over, full load amps 8.1, 60 hz, rigid base motor mounting type, motor thermal protection auto, ins. Class b, motor service factor 1.15, ball motor bearings, max. Ambient temp. 40 degrees c, motor shaft rotation cw/ccw, overall length 10-5/8 in., shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Split Ph 1/4 HP 1725/1140 115V 48Z by Century in US
USD 155.09
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: 927L. Belt drive motor, split-phase, 1/4, 1/14 hp, nameplate rpm 1725/1140, voltage 115, 1 phase, frame 48z, open dripproof, full load amps 4.4/2.2, 60 hz, cradle base motor mounting type, motor mounting position all angle, motor thermal protection auto, ins. Class b, motor service factor 1.35, ball motor bearings, max. Ambient temp. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

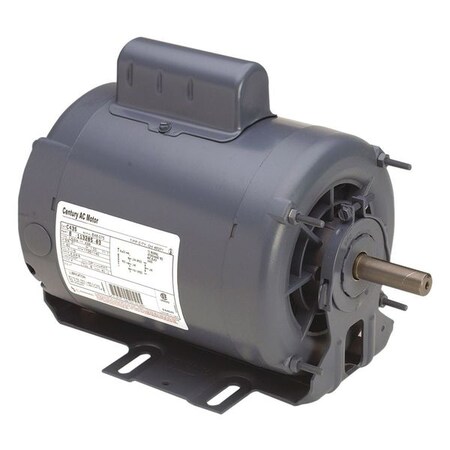

Motor Cap St 1 HP 1725/1140 208-230V 56 by Century in US
USD 400
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: C472V1. Belt drive motor, capacitor-start, 1, 1/3 hp, nameplate rpm 1725/1140, voltage 208-230, 1 phase, frame 56, open dripproof, full load amps 6.3-6.0/3.3-3.8, 60 hz, cradle base motor mounting type, motor mounting position all angle, motor thermal protection auto, ins. Class b, motor service factor 1.00, ball motor bearings, max. Ambient temp. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Split Ph 1/6 HP 1725 115V 56Z Open by Century in US
USD 121.36
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: RS2014. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1725,voltage 115,1 phase,frame 56z,open air-over,full load amps 5.1,60 hz,cradle base motor mounting type,thermal protection auto,insulation class b,service factor 1.35,sleeve bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 9-5/8 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

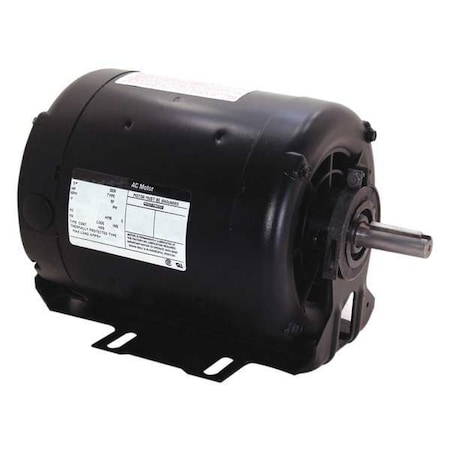

Motor Sp Ph 3/4 HP 1725/1425 115/230V 56 by Century in US
USD 256.99
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: F680. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1725/1425,voltage 115/230,1 phase,frame 56,open dripproof,full load amps 10.4/5.2,60/50 hz,cradle base motor mounting type,thermal protection auto,insulation class b,service factor 1.25,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 11-7/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Mtr 3 Ph 1 HP 1725 200-230/460V Eff 82.0 by Century in US
USD 254.18
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: H1031L. Belt drive motor,3-phase,cradle base hp,nameplate rpm 1725,voltage 200-230/460,3 phase,frame 56,totally enclosed air-over,full load amps 3.3-3.4/1.7,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.15,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 11-7/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Split Ph 1/4 HP 1725 115V 56Z Open by Century in US
USD 128
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: RS2026. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1725,voltage 115,1 phase,frame 56z,open air-over,full load amps 5.4,60 hz,cradle base motor mounting type,thermal protection auto,insulation class b,service factor 1.35,sleeve bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 9-1/8 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Belt Drive Motor 3/4 HP 6.6/3.3A by Century in US
USD 309.22
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: C526ES. Belt drive motor, 3-phase, 3/4 hp, nameplate rpm 1725, voltage 208-230/460, 1 phase, frame 56h, open, full load amps 6.6/3.3, 60/50 hz, rigid base motor mounting type, motor mounting position horizontal, motor thermal protection auto, ins. Class b, motor service factor 1.15, ball motor bearings, max. Ambient temp. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Sp Ph 1/2 HP 1725/1140 230V 56 ODP by Century in US
USD 188.6
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: SGF2054HL. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1725/1140,voltage 230,1 phase,frame 56,open dripproof,full load amps 5.3/2.4,60 hz,cradle base motor mounting type,thermal protection auto,insulation class b,service factor 1.0,sleeve bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 10-1/4 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Sp Ph 1/4 HP 1140 115/208-230V 48Y Model ARB2026SLV1 by Century in US
USD 190.75
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: ARB2026SLV1. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1140,voltage 115/208-230,1 phase,frame 48y,totally enclosed air-over,full load amps 6.2/2.8-3.1,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.0,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 10 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

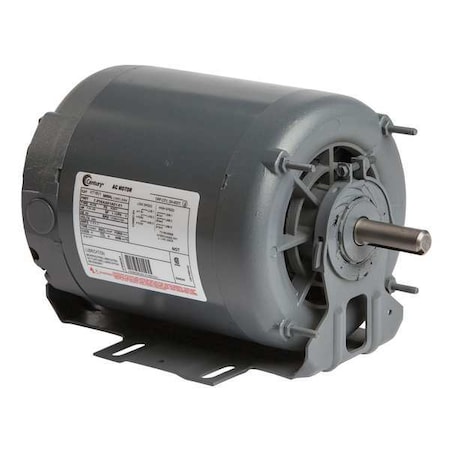

Motor 3 Ph 1 HP 1745/1140 460V Eff 70.0 by Century in US
USD 360.95
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: H718V1. Belt drive motor,3-phase,cradle base hp,nameplate rpm 1745/1140,voltage 460,3 phase,frame 56y,open dripproof,full load amps 1.7/1.1,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.15,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 11 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

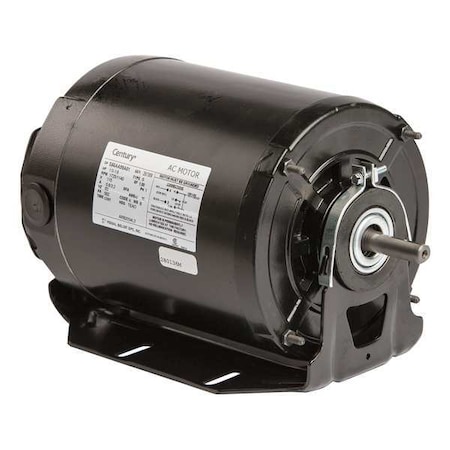

Motor Sp Ph 1/3 HP 1725 115/208-230V 56Z Model ARB2034L5 by Century in US
USD 166.5
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: ARB2034L5. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1725,voltage 115/208-230,1 phase,frame 56z,totally enclosed air-over,full load amps 7.3/3.8-3.8,60 hz,cradle base motor mounting type,thermal protection auto,insulation class b,service factor 1.35,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 10 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Split Ph 1/6 HP 1140 115V 48Z ODP by Century in US
USD 188
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: 815V2. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1140,voltage 115,1 phase,frame 48z,open dripproof,full load amps 3.6,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.35,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 10-1/8 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

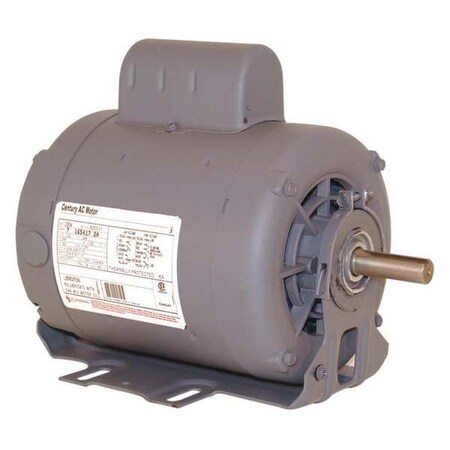

Motor Cap St 3/4 HP 1725/1140 230 56 ODP by Century in US
USD 342.1
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: UHH1036NB. Belt drive motor,capacitor-start,cradle base hp,nameplate rpm 1725/1140,voltage 230,1 phase,frame 56,open dripproof,full load amps 5.0/3.2,60 hz,cradle base motor mounting type,thermal protection auto,insulation class a,service factor 1.0,sleeve bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 12-3/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
|
|
|
Try Search on this site - find exactly what you need! Click below:
|
|
Item on this page: Mtr 3 Ph 1 HP 1725 200-230/460V Eff 75.0 by Century in US
|
