Tubeaxial Fans & Accessories by Dayton in US
| Page 3
|
|
|
 Curb Cap 6 In. H 30 In. W 30 In. D by Dayton in US
USD 418.95
(Indicative price - actual current price possibly lower)
US tech data: item ID: 4YM47. Curb cap, for tubeaxial fan dia. 18 in., for use with fans 4c661, 4tm82, and 4tm83, height 6 in., width 30 in., depth 30 in., recommended 8 in. Fixed curb item no. 4hx41, recommended 12 in. Fixed curb item no. 4hx49, 2rb79, max. Inlet temp. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Companion Flange Set of 2 30in For 3C412 by Dayton in US
USD 138.83
(Indicative price - actual current price possibly lower)
US tech data: item ID: 3C440. Tubeaxial companion flange, overall dia. 32-1/4 in., inside dia. 30-1/2 in., for tubeaxial fan dia. 30 in., for use with fans 4tm86 and g2539144, dimension a 32-1/4 in., dimension b 30-1/2 in., flange width 1-1/2 in., material 14 ga. Steel, mounting hole 7/16 in., includes predrilled mounting holes. Distributor item SKU: G3188771. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
|
Curb Cap 42 In. D 6 In. H 42 In. W by Dayton in US
USD 545.4
(Indicative price - actual current price possibly lower)
US tech data: item ID: 4YM49. Curb cap, height (in.) 6, width (in.) 42, depth (in.) 42, for tubeaxial fan dia. (in.) 30, recommended 8 in. Fixed curb item no. **4hx43**, recommended 12 in. Fixed curb item no. **4hx51** or g0267583, baked enamel finish, galvanized steel, max. Inlet temp. (deg. F) 200, for use with fans g2539144 and **4tm86**, 38, 32-3/32, 6, 42, 33-5/8. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Discharge Cap 26-3/32 In. H 32 In. W by Dayton in US
USD 1092.6
(Indicative price - actual current price possibly lower)
US tech data: item ID: 4YM56. Discharge cap, for tubeaxial fan dia. 24 in., for use with fans 4tm85 and 3c411, height 26-3/32 in., width 32 in., depth 32 in., max. Inlet temp. 200 degrees f, dimension a 27 in., dimension b 34 in., dimension c 6 in., dimension d 29-3/32 in., dimension e 32 in., material galvanized steel, finish unfinished, includes clam shell damper. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Tubeaxial Fan Vane Section 27 In. H by Dayton in US
USD 883.8
(Indicative price - actual current price possibly lower)
US tech data: item ID: 6TFE1. Tubeaxial fan vane section, for tubeaxial fan dia. 24 in., for use with fans 4tm85 and g0983412, height 27 in., width 27 in., depth 6-1/2 in., max. Inlet temp. 104 degrees f, dimension a 27 in., dimension b 13-1/2 in., dimension c 24-5/16 in., dimension d 6-15/32 in., dimension e 5/16 in., material steel, finish baked enamel. Distributor item SKU: G4189446. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
|
Curb Cap 57 In. D 6 In. H 57 In. W by Dayton in US
USD 793.8
(Indicative price - actual current price possibly lower)
US tech data: item ID: 4YM53. Curb cap, height (in.) 6, width (in.) 57, depth (in.) 57, for tubeaxial fan dia. (in.) 48, recommended 8 in. Fixed curb item no. G2408357, recommended 12 in. Fixed curb item no. G2634256, baked enamel finish, galvanized steel, max. Inlet temp. (deg. F) 200, for use with fans **3c416**, 56-13/64, 50-13/32, 6, 57, 51-3/4. Distributor item SKU: G2690895. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
|
Discharge Cap 44-13/32 In. H Unfinished by Dayton in US
USD 2050.56
(Indicative price - actual current price possibly lower)
US tech data: item ID: 4YM60. Discharge cap, height (in.) 44-13/32, width (in.) 50-13/64, depth (in.) 50-13/64, for tubeaxial fan dia. (in.) 42, unfinished finish, galvanized steel, max. Inlet temp. (deg. F) 200, for use with fans g2885617, includes clam shell damper, 50-13/64, 44-13/32, 6, 57, 45-3/4. Distributor item SKU: G1802132. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

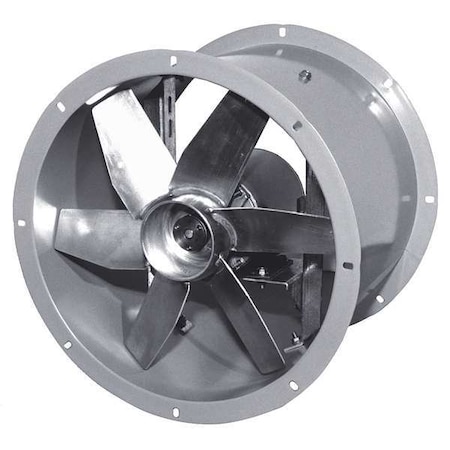

18" Tubeaxial Fan 115VAC Model 4TM82 by Dayton in US
USD 1113.7
(Indicative price - actual current price possibly lower)
US tech data: item ID: 4TM82. Tubeaxial fan, voltage 115, 1 phase, number of speeds 2, blade dia. 18 in., cfm @ 0.000-in. Sp 3938/2610, cfm @ 0.125-in. Sp 3724/2299, cfm @ 0.250-in. Sp 3521/1807, cfm @ 0.375-in. Sp 3323, cfm @ 0.500-in. Sp 3058, sones @ 0.250-in. Sp @ 5 ft. 25/20, full load amps 6.7/4.6, motor hp 1/2, max. Bhp 0.52/0.14, motor rpm 1750/1160, 60 hz, max. Inlet temp. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
|
Curb Cap 6 In. H 42 In. W 42 In. D by Dayton in US
USD 621.9
(Indicative price - actual current price possibly lower)
US tech data: item ID: 4YM50. Curb cap, height (in.) 6, width (in.) 42, depth (in.) 42, for tubeaxial fan dia. (in.) 34, recommended 8 in. Fixed curb item no. **4hx43**, recommended 12 in. Fixed curb item no. **4hx51** or g0267583, baked enamel finish, galvanized steel, max. Inlet temp. (deg. F) 200, for use with fans g1923056, 42-13/64, 36-13/32, 6, 42, 37-3/4. Distributor item SKU: G3370482. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

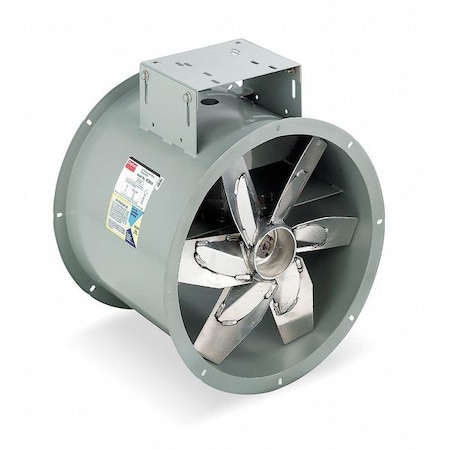

18" Tubeaxial Fan by Dayton in US
USD 850.48
(Indicative price - actual current price possibly lower)
US tech data: item ID: 4C661. Tubeaxial fan, drive type belt-drive, blade dia. 18 in., max. Motor height 9 in., shaft dia. 7/8 in., number of blades 6, max. Inlet temp. 200 degrees f, max. Ambient temp. 104 degrees f, mounting position vertical/horizontal, housing material steel, housing finish baked enamel, blade material aluminum, height 31 in., width 21 in., max. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
30" Tubeaxial Fan 200 to 230/460VAC by Dayton in US
USD 2735.1
(Indicative price - actual current price possibly lower)
US tech data: item ID: 2XZH2. Tubeaxial fan, voltage 200 to 230/460, 3 phase, number of speeds 1, blade dia. 30 in., cfm @ 0.000-in. Sp 14792, cfm @ 0.125-in. Sp 14208, cfm @ 0.250-in. Sp 13624, cfm @ 0.375-in. Sp 13036, cfm @ 0.500-in. Sp 12419, sones @ 0.250-in. Sp @ 5 ft. 29, full load amps 10/9.4/4.7, motor hp 3, max. Bhp 3.06, motor rpm 1160, 60 hz, max. Inlet temp. 104 degrees f, max. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
|
18" Tubeaxial Fan 115VAC by Dayton in US
USD 1341.12
(Indicative price - actual current price possibly lower)
US tech data: item ID: 4TM83. Tubeaxial fan, voltage 115, 1 phase, number of speeds 2, blade dia. 18 in., cfm @ 0.000-in. Sp 4670/3095, cfm @ 0.125-in. Sp 4436/2738, cfm @ 0.250-in. Sp 4198/2266, cfm @ 0.375-in. Sp 3947, cfm @ 0.500-in. Sp 3653, sones @ 0.250-in. Sp @ 5 ft. 30/22, full load amps 11.4/6.7, motor hp 3/4, max. Bhp 0.80/0.21, motor rpm 1750/1160, 60 hz, max. Inlet temp. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
|
Companion Flange Set of 2 60in For 5JKE5 by Dayton in US
USD 331.55
(Indicative price - actual current price possibly lower)
US tech data: item ID: 5JKE7. Tubeaxial companion flange, overall dia. 63 in., inside dia. 60-9/16 in., for tubeaxial fan dia. 60 in., for use with fans g1639967, dimension a 63 in., dimension b 60-9/16 in., flange width 1-1/2 in., material 14 ga. Steel, mounting hole 7/16 in., includes predrilled mounting holes to match tubeaxial fans specified. Distributor item SKU: G3267257. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
|
Discharge Cap 59 In. H 62 In. W 62 In. D by Dayton in US
USD 2306.88
(Indicative price - actual current price possibly lower)
US tech data: item ID: 5JKF2. Discharge cap, for tubeaxial fan dia. 54 in., for use with fans g1874905, height 59 in., width 62 in., depth 62 in., max. Inlet temp. 200 degrees f, dimension a 57 in., dimension b 64 in., dimension c 6 in., dimension d 59 in., dimension e 62 in., material galvanized steel, finish unfinished, includes damper. Distributor item SKU: G1906721. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

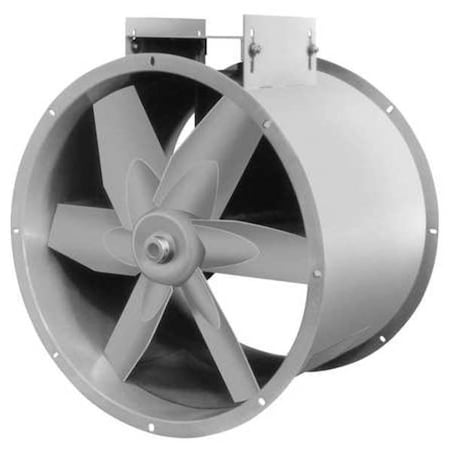

Tubeaxial Fan 60-1/2 In. H 57-3/4 In. W by Dayton in US
USD 3997
(Indicative price - actual current price possibly lower)
US tech data: item ID: 5JKE4. Tubeaxial fan, drive type belt-drive, blade dia. 54 in., max. Motor height 16-1/8 in., shaft dia. 1-7/16 in., number of blades 6, max. Inlet temp. 200 degrees f, max. Ambient temp. 104 degrees f, mounting position vertical/horizontal, housing material steel, housing finish baked enamel, blade material steel, height 60-1/2 in., width 57-3/4 in., max. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
|
Curb Cap 6 In. H 70 In. W 70 In. D by Dayton in US
USD 1591.68
(Indicative price - actual current price possibly lower)
US tech data: item ID: 5JKF1. Curb cap, for tubeaxial fan dia. 60 in., for use with fans 5jke5, height 6 in., width 70 in., depth 70 in., max. Inlet temp. 203 degrees f, dimension a 63 in., dimension b 70 in., dimension c 6 in., dimension d 65 in., dimension e 68 in., material galvanized steel, finish baked enamel. Distributor item SKU: G1172857. More....
More Details & Supplier : click here
SEARCH this site : click here
|
Try Search on this site - find exactly what you need! Click below:
|
|
Item on this page: Tubeaxial Fans & Accessories by Dayton in US
|
