Mtr 3 Ph 1.5hp 1725 200-230/460 Eff 74.3 by Century in US
Century Belt Drive HVAC Motors in USA
|
US tech data: item ID: H853V2. Belt drive motor, 3-phase, 1-1/2 hp, nameplate rpm 1725, voltage 200-230/460, 3 phase, frame 56h, open dripproof, full load amps 5.0-5.6/2.8, 60 hz, cradle base motor mounting type, motor thermal protection auto, ins. Class b, motor service factor 1.15, ball motor bearings, max. Ambient temp. 40 degrees c, motor shaft rotation cw/ccw, overall length 12-15/16 in., shaft dia. 5/8 in., shaft length 1-15/16 in. Distributor item SKU: G4008837. Reliable & durable belt drive HVAC motors by Century at best USA discount price and fast shipping.
 Indicative Price: USD 263.84
(for Actual Current Price, possibly lower,
please click below)
More Info & Supplier : click here
For more high specification HVAC technical products : click here
|
Try Search on this site - find exactly what you need! Click below:
|
|
|
|
 |
|
|
|
Motor Split Ph 1/6 HP 1140 115V 48Z ODP by Century in US
USD 188
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: 815V2. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1140,voltage 115,1 phase,frame 48z,open dripproof,full load amps 3.6,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.35,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 10-1/8 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Mtr 3 Ph 1/2hp 1140 200-230/460 Eff 76.0 by Century in US
USD 289.01
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: H1029. Belt drive motor,3-phase,cradle base hp,nameplate rpm 1140,voltage 200-230/460,3 phase,frame 56,totally enclosed nonventilated,full load amps 2.1-2.0/1.0,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.15,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 11-1/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Cap St 1 HP 3450 115/208-230V 56 Model B589 by Century in US
USD 223
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: B589. Belt drive motor,capacitor-start,cradle base hp,nameplate rpm 3450,voltage 115/208-230,1 phase,frame 56,open dripproof,full load amps 12.0/6.6-6.0,60 hz,cradle base motor mounting type,thermal protection auto,insulation class b,service factor 1.25,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 11-7/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Sp Ph 1/3 HP 1725 115/208-230V 56Z Model ARB2034L5 by Century in US
USD 166.5
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: ARB2034L5. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1725,voltage 115/208-230,1 phase,frame 56z,totally enclosed air-over,full load amps 7.3/3.8-3.8,60 hz,cradle base motor mounting type,thermal protection auto,insulation class b,service factor 1.35,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 10 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Sp Ph 1/3 HP 1725/1140 115V 56 ODP by Century in US
USD 200
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: F390. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1725/1140,voltage 115,1 phase,frame 56,open dripproof,full load amps 5.0/3.0,60 hz,cradle base motor mounting type,thermal protection auto,insulation class b,service factor 1.35,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 11-1/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

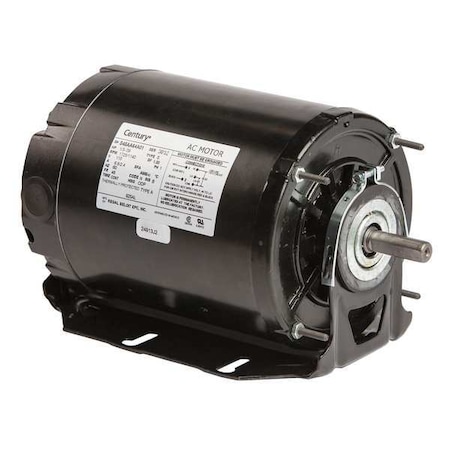

Motor Split Ph 1/4 HP 1725/1140 230V 48 by Century in US
USD 185.95
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: 927AL. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1725/1140,voltage 230,1 phase,frame 48,open dripproof,full load amps 2.7/1.3,60 hz,cradle base motor mounting type,thermal protection auto,insulation class b,service factor 1.35,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 9-13/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

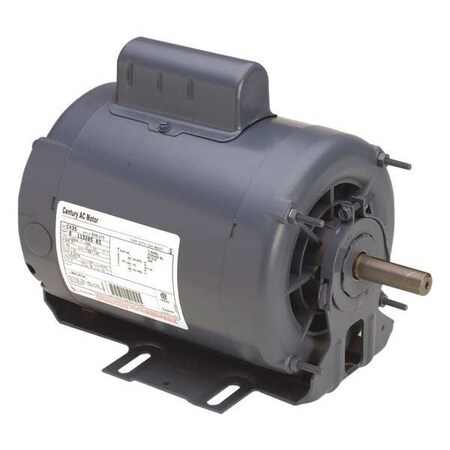

Mtr Cap St 3/4 HP 1725/1140 208-230V 56 by Century in US
USD 398
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: C534V1. Belt drive motor, capacitor-start, 3/4, 1/4 hp, nameplate rpm 1725/1140, voltage 208-230, 1 phase, frame 56, open dripproof, full load amps 5.0-5.0/2.7-2.8, 60 hz, cradle base motor mounting type, motor thermal protection auto, ins. Class b, motor service factor 1.25, ball motor bearings, max. Ambient temp. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Sp Ph 1/2 HP 1725 115/230V 56 Open by Century in US
USD 161.94
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: RB2054DV2. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1725,voltage 115/230,1 phase,frame 56,open,full load amps 9.6/4.8,60 hz,cradle base motor mounting type,thermal protection auto,insulation class b,service factor 1.25,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 10-3/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Sp Ph 1/4 HP 1725/1140 115 56Z ODP by Century in US
USD 172
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: ARB2024L1. Belt drive motor, split-phase, 1/4, 1/12 hp, nameplate rpm 1725/1140, voltage 115, 1 phase, frame 56z, totally enclosed air-over, full load amps 4.4/3.0, 60 hz, cradle base motor mounting type, motor mounting position all angle, motor thermal protection auto, ins. Class b, motor service factor 1.00, ball motor bearings, max. Ambient temp. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Mtr 3 Ph 2 HP 3450 200-230/460V Eff 80.0 by Century in US
USD 349.61
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: BK3202L. Belt drive motor, 3-phase, 2 hp, nameplate rpm 3450, voltage 200-230/460, 3 phase, frame 56h, open dripproof, full load amps 6.0-5.8/2.9, 60 hz, cradle base motor mounting type, motor thermal protection auto, ins. Class b, motor service factor 1.20, ball motor bearings, max. Ambient temp. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Cap St 3/4 HP 1725/1140 230 56 ODP by Century in US
USD 342.1
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: UHH1036NB. Belt drive motor,capacitor-start,cradle base hp,nameplate rpm 1725/1140,voltage 230,1 phase,frame 56,open dripproof,full load amps 5.0/3.2,60 hz,cradle base motor mounting type,thermal protection auto,insulation class a,service factor 1.0,sleeve bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 12-3/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

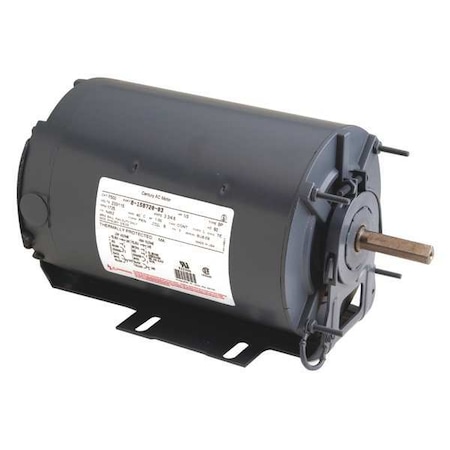

Motor Split Ph 1/3 HP 3450 115/230V 48Z by Century in US
USD 157.95
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: F344V1. Belt drive motor,split-phase,cradle base hp,nameplate rpm 3450,voltage 115/230,1 phase,frame 48z,open dripproof,full load amps 6.3/3.2,60 hz,cradle base motor mounting type,thermal protection auto,insulation class b,service factor 1.35,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 10-1/4 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Sp Ph 1/2 HP 1725 115/208-230V 48 by Century in US
USD 129.95
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: BF2054. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1725,voltage 115/208-230,1 phase,frame 48,open air-over,full load amps 8.2/4.1,60 hz,cradle base motor mounting type,thermal protection auto,insulation class b,service factor 1.25,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 9-15/16 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
Motor Sp Ph 1/3 HP 1725 115/208-230V 48 by Century in US
USD 130.95
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: ARB2034L2. Belt drive motor,split-phase,cradle base hp,nameplate rpm 1725,voltage 115/208-230,1 phase,frame 48,totally enclosed air-over,full load amps 4.9/2.3-2.5,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.0,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 9-7/8 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|

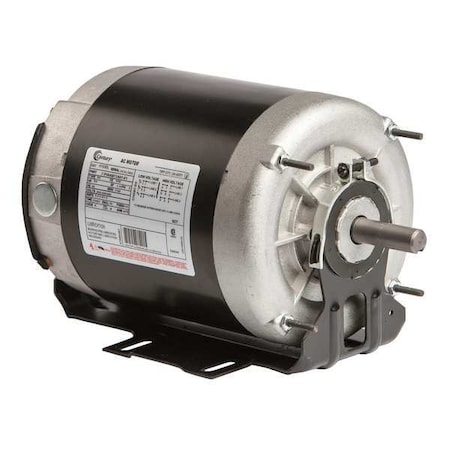

Mtr 3 Ph 3/4hp 1725 200-230/460 Eff 76.0 by Century in US
USD 285.55
(Indicative price - actual current price possibly lower)
Belt Drive HVAC Motors by Century in US
US tech data: item ID: H1030L. Belt drive motor,3-phase,cradle base hp,nameplate rpm 1725,voltage 200-230/460,3 phase,frame 56,totally enclosed nonventilated,full load amps 2.3-2.4/1.2,60 hz,cradle base motor mounting type,thermal protection none,insulation class b,service factor 1.15,ball bearings,max. Ambient temp. 40 degrees c,motor shaft rotation cw/ccw,overall length 11-1/2 in.,shaft dia. More....
More Details & Supplier : click here
SEARCH this site : click here
|
|
|
|
|
|
Try Search on this site - find exactly what you need! Click below:
|
|
Item on this page: Mtr 3 Ph 1.5hp 1725 200-230/460 Eff 74.3 by Century in US
|
